Smart Lighting For Everyday Life

CONSUMER LIGHTING

Explore our wide range of energy-efficient LED products designed for modern homes, offices and commercial spaces. Reliable. Efficient. Built for India.

Surge Protection

up to 4Kv

Power Factor

>0.95

For Indoor

Applications Only

Quality

Assured

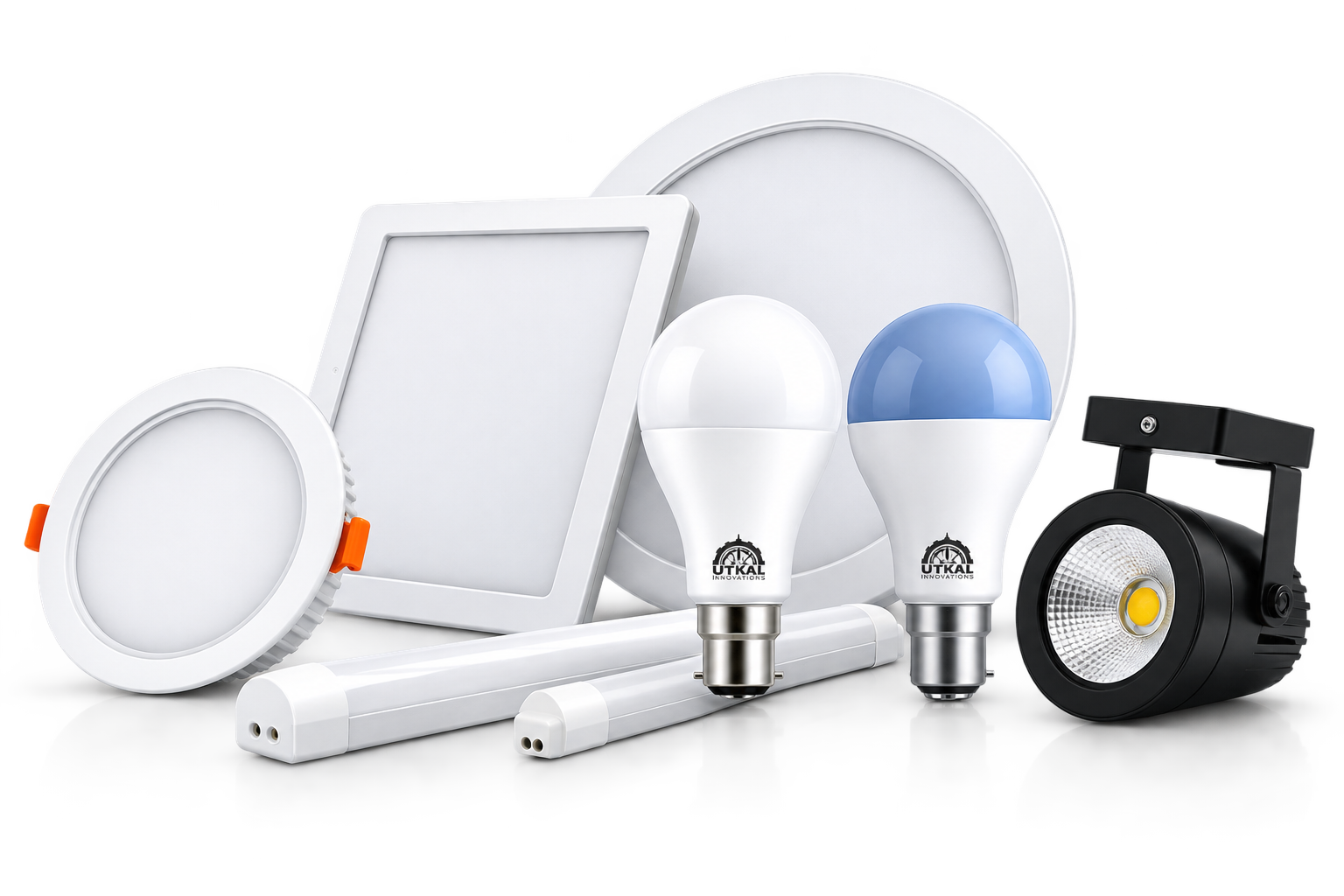

Utkal Innovations Consumer LED Lighting Products

01

LED BULBS

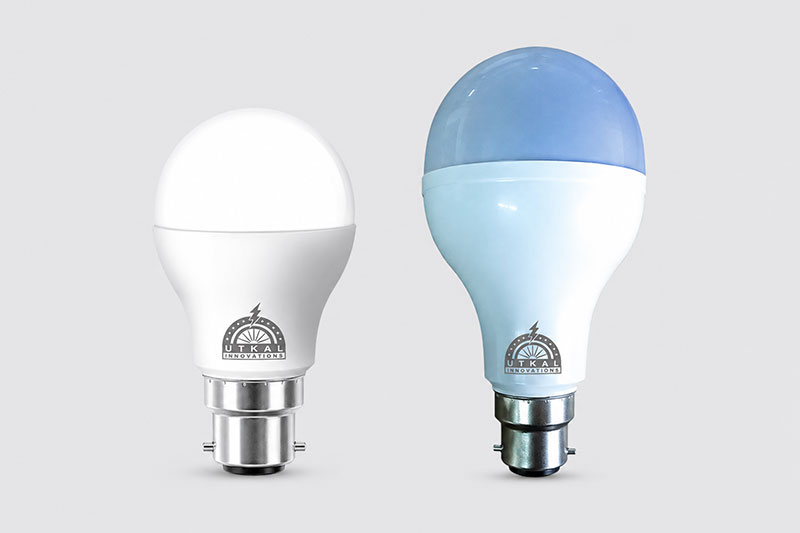

Shine LED Bulb

Utkal Innovations Shine LED Bulb

Code	Wattage (W)	Dimensions (mm)
UIRB09	9W
UIRB12	12W
UIRB15	15W
UIRB20	20W

Specifications

For indoor applications only
Surge protection up to 4kV
Power Factor >0.95
Polycarbonate Housing

Brighto LED Emergency Bulb

Utkal Innovations Brighto LED Emergency Bulb

Code	Wattage (W)	Dimensions (mm)
UIEB09	9W
UIEB15	15W

Specifications

For indoor applications only
Surge protection up to 4kV
Power Factor >0.95
Polycarbonate Housing

02

LED DOWNLIGHTS

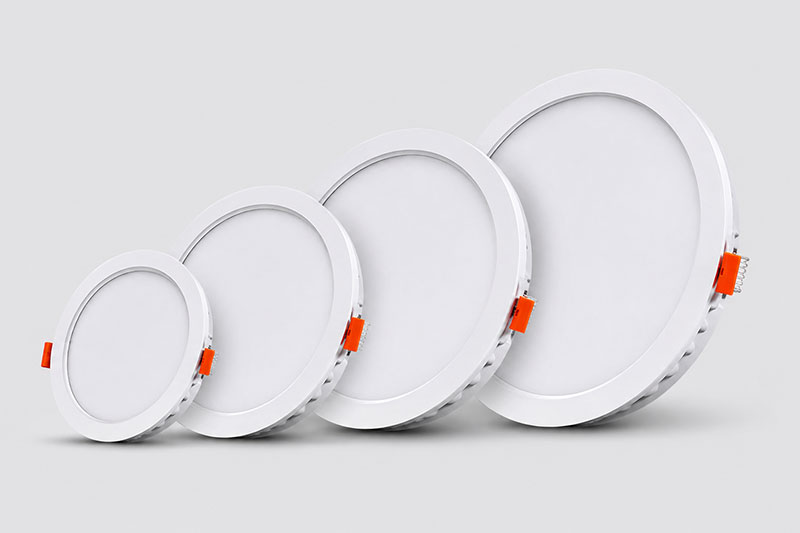

Sarala-100 Round Downlight

Utkal Innovations Sarala-100 Round Downlight

Code	Wattage (W)	Dimensions (mm)
UIBRP09	9W
UIBRP12	12W
UIBRP15	15W
UIBRP18	18W

Specifications

For indoor applications only
Surge protection up to 4kV
Power Factor >0.95
Polycarbonate Housing

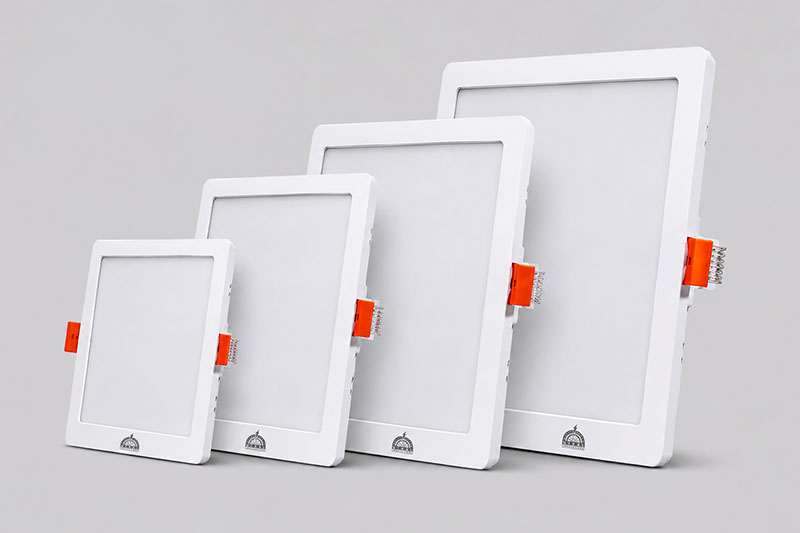

Sarala-100 Square Downlight

Utkal Innovations Sarala-100 Square Downlight

Code	Wattage (W)	Dimensions (mm)
UIBSP09	9W
UIBSP12	12W
UIBSP15	15W
UIBSP18	18W

Specifications

For indoor applications only
Surge protection up to 4kV
Power Factor >0.95
Polycarbonate Housing

03

LED PANEL LIGHTS

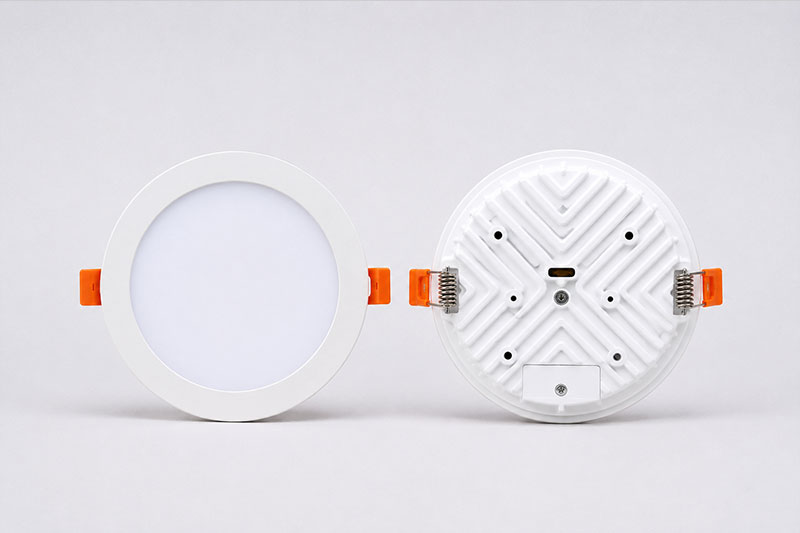

UI Backlit Round Panel Light

Utkal Innovations Backlit Round Panel

Code	Wattage (W)	Diameter / Height	Cutout Size
UIBLR0309	8W	120 × 25 mm	100 mm
UIBLR0310	12W	145 × 30 mm	125 mm
UIBLR0311	18W	170 × 30 mm	150 mm
UIBLR0312	24W	190 × 30 mm	175 mm

Specifications

LED: Everbrite
Driver: Non Isolated
Colour Temperature: 3000K / 4000K / 5700K / 6500K
Lumen Efficiency: 80 Lm / W
CRI: 80
Material: Aluminium
For indoor Applications only
Surge Protection upto 4Kv

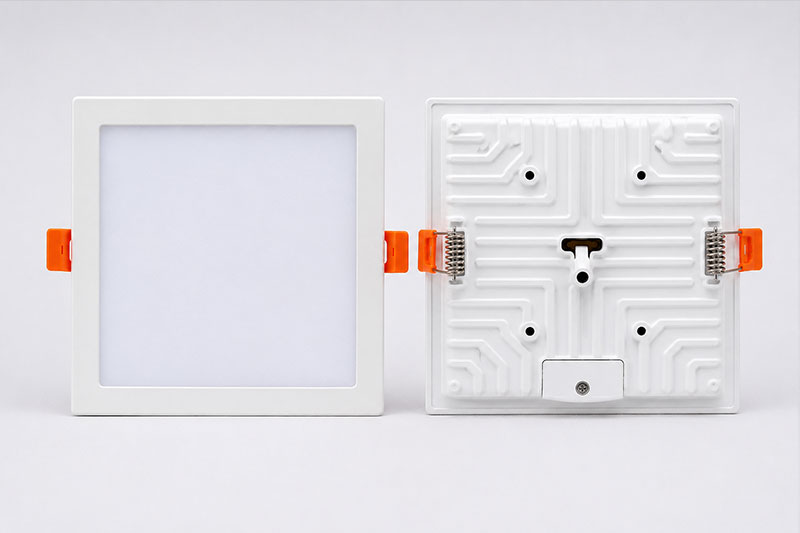

UI backlit Square Panel Light

Utkal Innovations Backlit Square Panel

Code	Wattage (W)	Diameter / Height	Cutout Size
UIBLS0313	12W	145 × 30 mm	125 mm
UIBLS0314	18W	170 × 30 mm	150 mm
UIBLS0315	24W	195 × 30 mm	175 mm

Specifications

LED: Everbrite
Driver: Non Isolated
Colour Temperature: 3000K / 4000K / 5700K / 6500K
Lumen Efficiency: 80 Lm / W
CRI: 80
Material: Aluminium Die Casting
For indoor Applications only
Surge Protection upto 4Kv

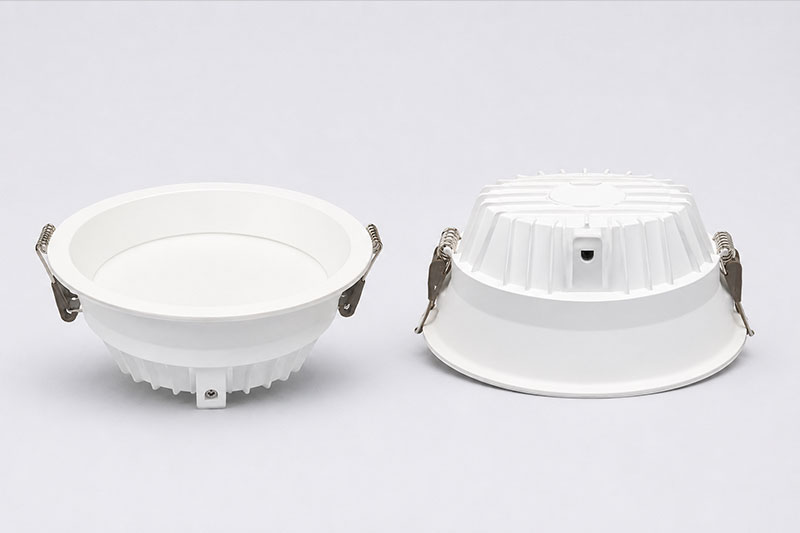

UI Deep Down Round Panel Light

Utkal Innovations Deep Down Panel

Code	Wattage (W)	Diameter / Height	Cutout Size
UIDLR0309	12W	120 × 50 mm	110 mm
UIDLR0310	18W	148 × 50 mm	138 mm
UIDLR0311	24W	170 × 50 mm	160 mm

Specifications

LED: Everbrite
Driver: Non Isolated
Colour Temperature: 3000K / 4000K / 5700K / 6500K
Lumen Efficiency: 80 Lm / W
CRI: 80
Material: Aluminium Die Casting
For indoor Applications only
Surge Protection upto 4Kv

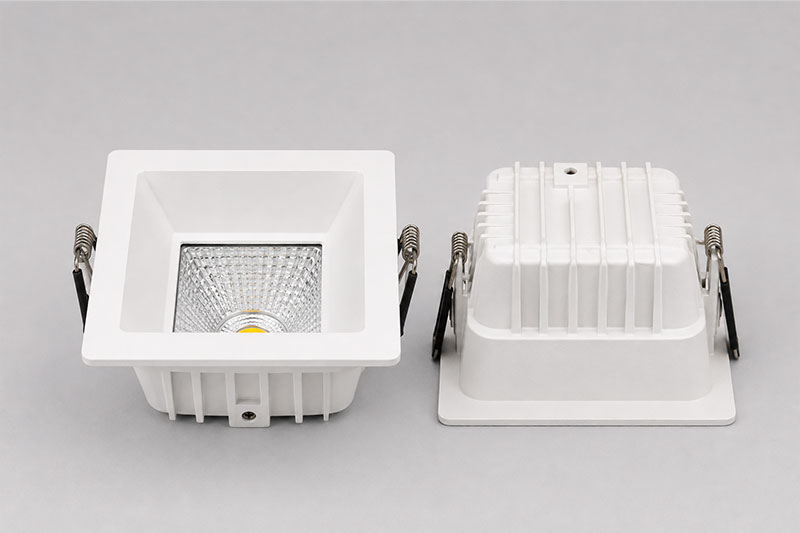

UI Deep Down Square Panel Light

Utkal Innovations Deep Down Square Panel Light

Code	Wattage (W)	Diameter / Height	Cutout Size
UIDLS0313	12W	110 × 110 × 50 mm	100 mm
UIDLS0314	18W	143 × 143 × 50 mm	133 mm
UIDLS0315	24W	165 × 165 × 50 mm	155 mm

Specifications

LED: Everbrite
Driver: Non Isolated
Colour Temperature: 3000K / 4000K / 5700K / 6500K
Lumen Efficiency: 80 Lm / W
CRI: 80
Material: Aluminium Die Casting
For indoor Applications only
Surge Protection upto 4Kv

04

LED BATTENS

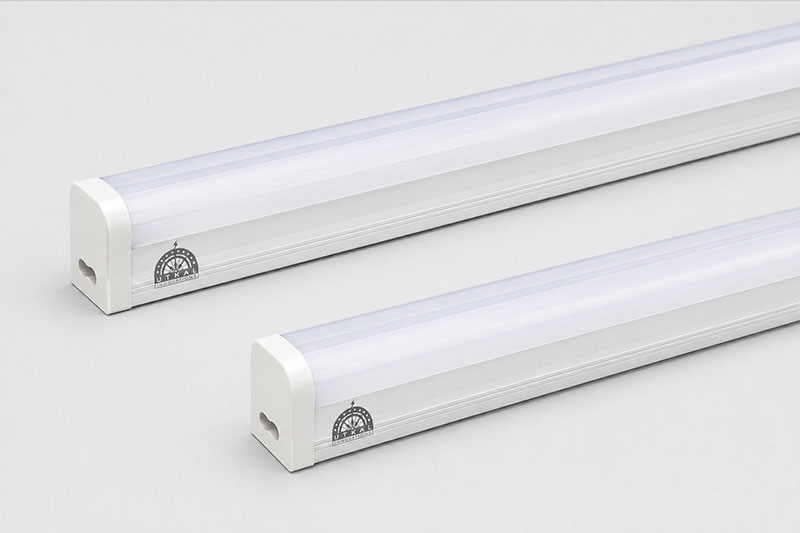

Croma LED Batten

Utkal Innovations Croma LED Batten

Code	Wattage (W)	Dimensions (mm)
UIPBS10	10W	525 × 22 × 28 mm
UIPBS20	20W	1126 × 22 × 28 mm
UIPBS36	36W	1126 × 22 × 28 mm

Specifications

For indoor applications only
Surge protection up to 4kV
Power Factor >0.95
Polycarbonate Housing

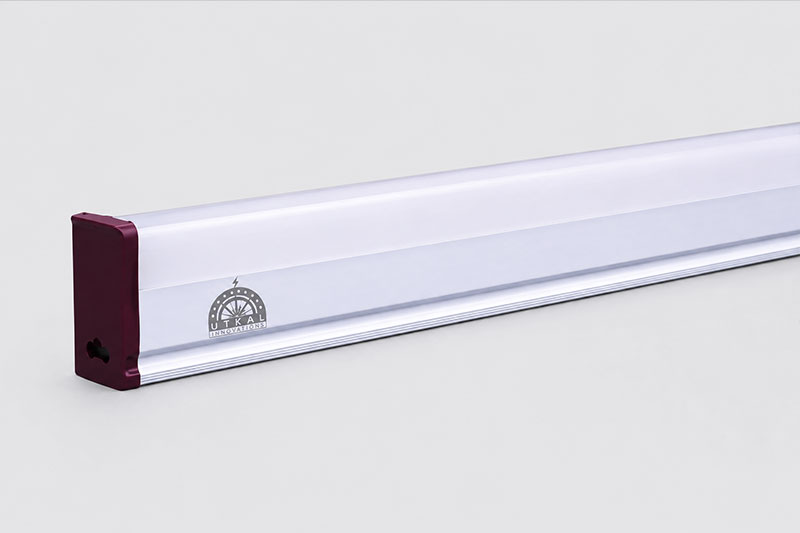

Brighto AL Batten

Utkal Innovations Brighto AL Batten

Code	Wattage (W)	Dimensions (mm)
UIABS10	10W	525 × 22 × 28 mm
UIABS20	20W	1095 × 22 × 28 mm
UIABS36	36W	1095 × 22 × 28 mm

Specifications

For indoor applications only
Surge protection up to 4kV
Power Factor >0.95
Aluminium Housing & PC Diffuser

05

LED SPOTLIGHTS

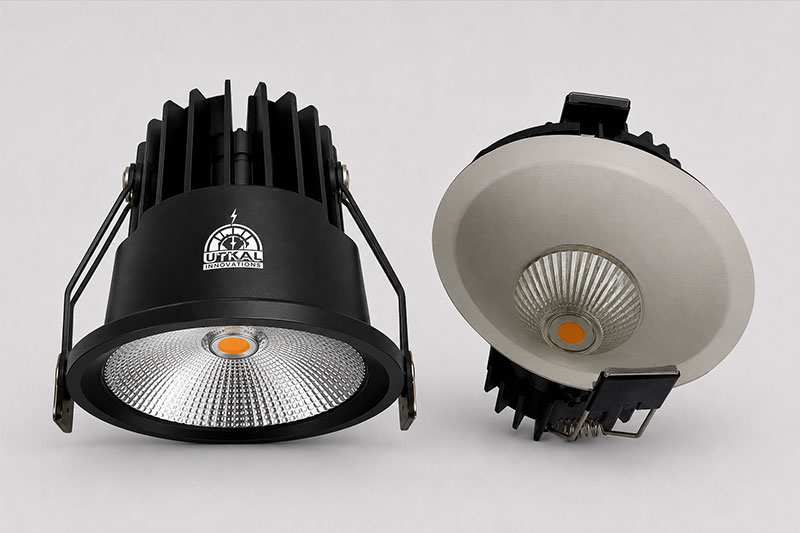

UI FIX Spot Light (COB)

Utkal Innovations UI FIX COB Spot Light

Code	Wattage (W)	Diameter / Height	Cutout Size
UIF0302	7W	70 × 70 mm	60 mm
UIF0303	12W	80 × 74 mm	70 mm
UIF0304	18W	120 × 106 mm	108 mm
UIF0305	20W	120 × 106 mm	108 mm
UIF0306	24W	159 × 120 mm	145 mm
UIF0307	30W	159 × 120 mm	145 mm

Specifications

LED: CREE / Bridgelux
Driver: Fulham / Philips / Osram
Colour Temperature: 3000K / 4000K / 5700K / 6500K
Reflector: Shiland / Darko
Shinland Lens: 7W / 12W - 40
Lumen Efficiency: 80-100 Lm / W
LED Beam Angle: 15 / 24 / 36 / 60
Ring Colour: White / Black / Grey
Heatsink Colour: Black
Material: Aluminium Die Casting
CRI: 70 / 80 / 90
For indoor Applications only
Surge Protection upto 4Kv

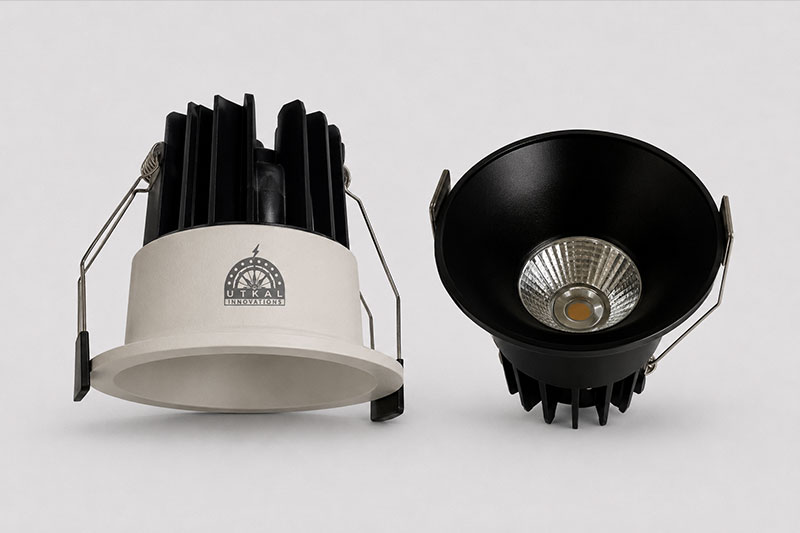

UI FB Value Spot Light

Utkal Innovations UI FB Value Spot Light

Code	Wattage (W)	Diameter / Height	Cutout Size
UIN0305	3W	46 × 44 mm	39 mm
UIN0306	7W	75 × 65 mm	65 mm
UIN0307	12W	85 × 74 mm	75 mm
UIN0308	18W	95 × 93 mm	85 mm

Specifications

LED: CREE / Bridgelux
Driver: Fulham / Philips / Osram
Colour Temperature: 3000K / 4000K / 5700K / 6500K
Reflector: Shiland / Darko
Shinland Lens: 7W / 12W - 40
Lumen Efficiency: 80-100 Lm / W
LED Beam Angle: 15 / 24 / 36 / 60
Ring Colour: White / Black / Grey
Heatsink Colour: Black
Material: Aluminium Die Casting
CRI: 70 / 80 / 90
For indoor Applications only
Surge Protection upto 4Kv

Utkal Innovations is an LED lighting manufacturer and supplier providing reliable LED lighting solutions across India, including Gujarat and Daman. Our product range includes LED bulbs, LED panel lights, LED downlights, LED flood lights, LED street lights, LED high bay lights, LED battens, bulkhead lights, emergency bulbs and night lamps.
