Smart Lighting For Everyday Life
OEM & CUSTOMIZED SOLUTIONS
Explore our wide range of energy-efficient LED products designed for modern homes, offices and commercial spaces. Reliable. Efficient. Built for India.
Surge Protection
up to 4KvPower Factor
>0.95For Indoor
Applications OnlyQuality
Assured
01
CUSTOM-DESIGNED LED PRODUCTS
Custom Tailored Architectural LED Luminaires
| Code | Wattage (W) | Optics & Finish |
|---|---|---|
| UI-OEM-AD01 | 15W / 24W / 36W | Custom Linear Profile / Anodized Powder Coat |
| UI-OEM-AD02 | 45W / 60W / 72W | Custom Curved Extrusion / Dual Color CCT |
Specifications
- Fully custom extrusion profiles and RAL color powder coating
- Precision beam angle customization: 15°, 24°, 36°, 60° & Oval distribution
- Integrated DALI-2, 0-10V, or Phase-cut dimming protocols

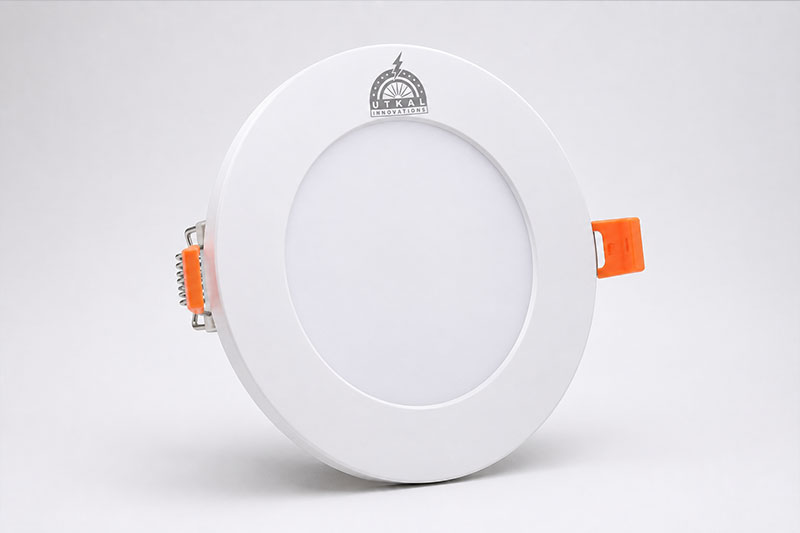

OEM Downlight & Spot Module Engine
| Code | Wattage (W) | Dimensions (mm) |
|---|---|---|
| UI-OEM-DL07 | 7W – 12W | Cutout Ø75mm × H85mm |
| UI-OEM-DL18 | 15W – 24W | Cutout Ø110mm × H115mm |
Specifications
- High CRI >90 / R9 >50 COB LED light engine integration
- Customized die-cast aluminum heat sinks for long thermal life
- Laser engraved OEM customer logo branding on bezel frame
02
BRAND-SPECIFIC SPECIFICATIONS
Custom Luminaire Housings & Heavy-Duty Heatsinks
| Code | Target Power | Thermal Rating |
|---|---|---|
| UI-OEM-TH50 | 50W – 100W | Die-cast ADC12 Aluminum / IP65 |
| UI-OEM-TH150 | 150W – 240W | Cold-forged Anodized Fins / IP66 |
Specifications
- In-house CNC machining and die-casting to client engineering prints
- IP65 / IP66 ingress protection and IK08 impact resistance options
- Validated thermal dissipation operating up to 55°C ambient temperature
Brand-Tailored Street & Floodlight Fixtures
| Code | Wattage (W) | System Efficacy |
|---|---|---|
| UI-OEM-SL30 | 30W – 60W | Up to 150 lm/W Photocell Ready |
| UI-OEM-FL100 | 100W – 200W | 140 lm/W Toughened Glass Lens |
Specifications
- Custom NEMA 7-pin socket integration for smart lighting management
- High surge protection immunity up to 10kV / 20kV external SPD
- Customized laser etched logo and barcode serial stickers
03
CUSTOMIZED WATTAGE, CCT & OPTICS
High-Efficacy Custom MCPCB LED Modules
| Code | Wattage (W) | CCT Range |
|---|---|---|
| UI-OEM-PCB24 | 24W | 3000K / 4000K / 6500K (160 lm/W) |
| UI-OEM-PCB48 | 48W | Tunable White 2700K – 6500K Dual CCT |
Specifications
- Aluminum metal-core PCB (1.6mm thickness, 2W/m-K thermal conductivity)
- MacAdam 3-Step Ellipse color consistency for uniform batch output
- Customizable lumen output: 140 lm/W up to 180 lm/W
Customized Lens & Optical Reflector Engines
-flood-light.jpg "Customized Optical Reflector Engine")
| Code | Beam Pattern | Optical Material |
|---|---|---|
| UI-OEM-OPT15 | Narrow Beam 15° / 25° | Optical Grade PMMA Lens Array |
| UI-OEM-OPT60 | Asymmetric Type II / III | UV-Stabilized Polycarbonate |
Specifications
- Anti-glare micro-prismatic diffuser options (UGR <19)
- High optical transmittance (>92%) UV-stabilized optics
- Custom IES / LDT photometric simulation report provided
04
PRIVATE-LABEL MANUFACTURING

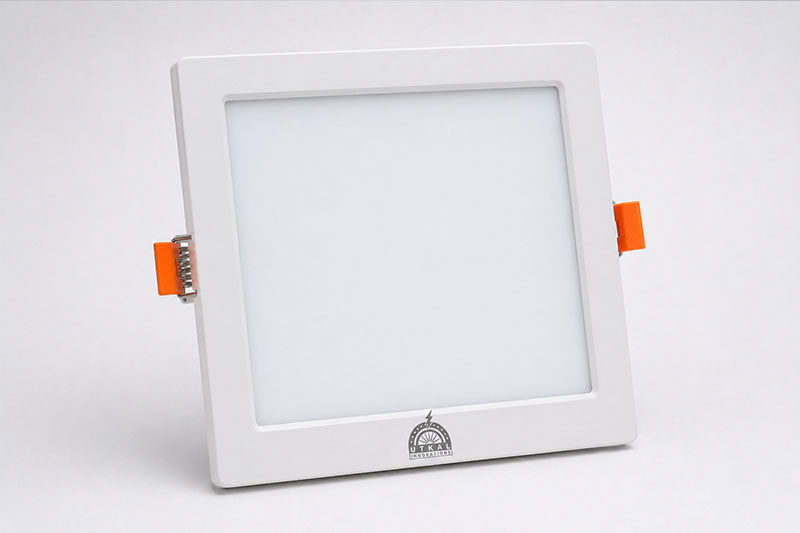

Turnkey Private-Label Consumer & Commercial Range
| Code | Product Type | Branding Options |
|---|---|---|
| UI-PL-PNL | 2x2 Panel 36W / 48W | Custom Box, Logo Pad Printing & Barcode |
| UI-PL-BTN | LED Batten 10W / 20W / 36W | Custom Sleeve & Outer Master Carton |
Specifications
- Full custom retail packaging, barcode printing, and master carton branding
- BIS certified, ISO 9001 quality assurance manufacturing compliance
- Turnkey warehousing and drop-shipping support for distributor channels
Custom Branded Industrial Heavy-Duty Luminaires
| Code | Category | Private Label Services |
|---|---|---|
| UI-PL-WG30 | Well-Glass 30W – 50W | Custom Nameplate & Serial Numbering |
| UI-PL-HB100 | High Bay 100W – 200W | Custom User Manual & Warranty QR Code |
Specifications
- Private label serial numbering and warranty tracking QR code stickers
- Customized instruction manual, warranty card, and hardware kits
- 100% burn-in testing (24-hour high voltage soak test included)
05
PRODUCT DEVELOPMENT AND OEM MANUFACTURING
Custom Constant-Current LED Driver Development
| Code | Output Range | Driver Features |
|---|---|---|
| UI-OEM-DR15 | 15W – 30W (350mA / 700mA) | Isolated Constant Current / PF >0.95 |
| UI-OEM-DR60 | 40W – 75W (1050mA / 1400mA) | High Surge 4kV / THD <10% / IP67 Potted |
Specifications
- Over-voltage, short-circuit, and thermal foldback protection circuitry
- Custom current output configuration (350mA, 700mA, 1050mA, 1400mA)
- Compact potted IP67 metal enclosure or open-frame chassis options
End-to-End Contract R&D & OEM Prototype Assembly
| Code | R&D Phase | Deliverables |
|---|---|---|
| UI-RD-PROTO | 3D CAD to Functional Prototype | Working Prototype in 10 Business Days |
| UI-RD-MASS | Mass Production & Tooling | Full Mold Tooling & Automated Assembly |
Specifications
- Rapid 3D printing and SLA prototyping for physical fitment testing
- Photometric laboratory testing (Integrating Sphere & Goniophotometer)
- Strict IP protection and Non-Disclosure Agreement (NDA) guarantee
